When the AI detects abnormal equipment statuses or when parameters exceed the safety range, the wearable device of production line engineers or management staff is immediately warned for them to quickly take appropriate measures to reduce the risks of the work environment.
AI Solution
Solutions.
Factory manager is able to read the information of digital or analog equipment automatically, and inspect flaws such as dirt, discoloration or physical damages. With the support of image recognition, digital management of production maintenance can be realized and maintenance time can be reduced.
Digita Twins方案
Solutions.
AR inspection cooperation solutions integrate virtual production machine models with physical IoT to provide real-time machine data and auxiliary information to production line technical supervisors or operators to optimize inspection benefits, implementing the function of intelligent inspection.
AR Solution
AI Solution
Digital Twin Solutions
AR Solution
Products.
NX-R2110
01
NX-R2110
產品_外層_NX-R2022_mode
02
NX-R2022
NX-R2112
03
NX-R2112
NX-R2202_mode
04
NX-R2202
產品_外層_NX-R2026_mode
05
NX-R2026
選單_NX-R3110
06
NX-R3110
NX-R2116
07
NX-R2116
產品_外層_NX-R311_mode
08
NX-R3112
產品_外層_NX-R2028_mode
09
NX-R2028
CT Product Introduction
10
CT Product Introduction
NX-R2150
11
NX-R2150
NX-R2032_mode
12
NX-R2032
產品_外層_NX-R2052_mode
13
NX-R2052
SMO
14
SMO
5GC
15
5G Core Network.
NX-H2111
16
NX-H2111
K888G4
17
K888G4
NX-H2200
18
NX-H2200
NX-H2201
19
NX-H2201
NX-H3003A
20
NX-H3003A
Products.

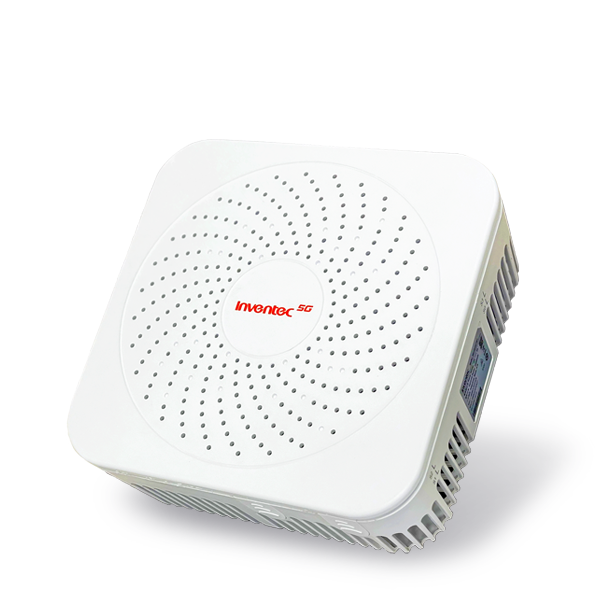

NX-R2110
Indoor RU
NX-R2110
  • FR1、5G
  • GPS/IEEE 1588v2/SyncE
  • SU-MIMO 4x4
Indoor N79 RU. Supporting FR1 for 5G Private Network, Supporting eCPRI、O-RAN Split Option 7-2, Supporting GPS/IEEE 1588v2/SyncE time synchronization, Supporting SU-MIMO 4x4, 200 active users per cell.
產介_大圖_NX-R2022_mode

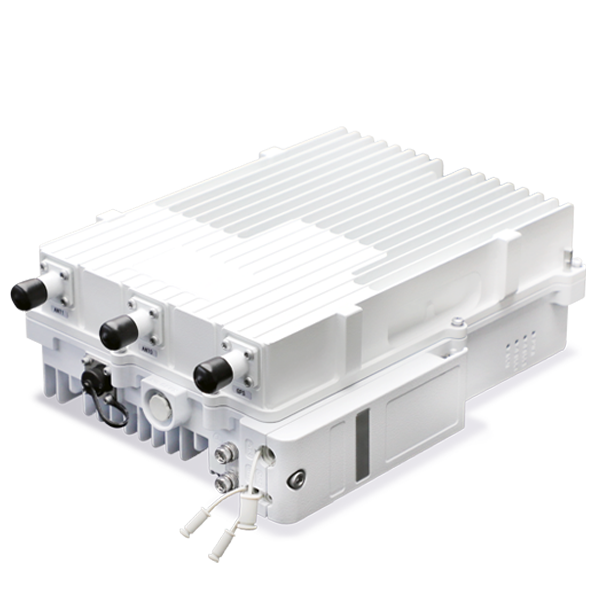

Outdoor gNB
NX-R2022
  • all-in-one gNB
  • 2x2 MIMO
  • 2x10W
Outdoor N78 Integrated Small Cell.Supports Sub-6G FR1 N78 frequency band all-in-one gNB, Supports 100MHz Channel Bandwidth, Supports DL 850Mbps, UL 660Mbps transmission speeds, Supports 5GC SA mode and simultaneous connection from 1200 users, 2x2 MIMO (DL: 2L, UL: 2L), 2x10W power output.
NX-R2112
Indoor RU
NX-R2112
  • FR1、5G
  • GPS/IEEE 1588v2/SyncE
  • SU-MIMO 4x4
Indoor N78 RU. Supporting FR1 for 5G Private Network, Supporting eCPRI、O-RAN Split Option 7-2, Supporting GPS/IEEE 1588v2/SyncE time synchronization, Supporting SU-MIMO 4x4, 200 active users per cell.
NX-R2202_mode
Outdoor RU
NX-R2202
  • Supports 5G
  • Configured out of the box
  • High Security
Outdoor N78 RU. A 5G distributed base station that supports eCPRI, Supports the 5G N78 frequency band (3.3 ~ 3.6GHz), Has 4x4 MIMO high-efficiency and high-sensitivity antennas, Supports the precision time protocol.
產品_外層_NX-R2026_mode
Outdoor gNB
NX-R2026
  • all-in-one gNB
  • 2x2 MIMO
  • 2x10W PO
Outdoor N48 Integrated Small Cell. Supports Sub-6G FR1 N48 frequency band all-in-one gNB, Supports 100MHz Channel Bandwidth, Supports DL 850Mbps, UL 660Mbps transmission speeds, Supports 5GC SA mode and simultaneous connection from 1200 users, 2x2 MIMO (DL:2L, UL:2L), 22x10W power output.
首頁主圖_NX-R3110
Indoor gNB
NX-R3110
  • IEEE1588 V1/V2
  • 4x4 MIMO
  • N78/N79
Indoor N79 Integrated Small Cell. The 3GPP R15 standard effectively improves the network performance and provides excellent services, Supports the 5G N79 band width, Has 4x4 MIMO high-efficiency and high-sensitivity antennas, The output power can reach a high sensitivity of 24dBm, Supports the precision time protocol IEEE 1588 V1/V2.
NX-R2116
Indoor RU
NX-R2116
  • FR1、5G
  • GPS/IEEE 1588v2/SyncE
  • SU-MIMO 4x4
Indoor N48 RU. Supporting FR1 for 5G Private Network, Supporting eCPRI、O-RAN Split Option 7-2, Supporting GPS/IEEE 1588v2/SyncE time synchronization, Supporting SU-MIMO 4x4, 200 active users per cell.
產介_大圖_NX-R311_mode
Indoor gNB
NX-R3112
  • IEEE1588 V1/V2
  • 4x4 MIMO
  • 5G N78
Indoor N78 Integrated Small Cell. The 3GPP R15 standard effectively improves the network performance and provides excellent services, Supports the 5G N78 band width, Has 4x4 MIMO high-efficiency and high-sensitivity antennas, The output power can reach a high sensitivity of 24dBm, Supports the precision time protocol IEEE 1588 V1/V2.
產品_外層_NX-R2028_mode
Outdoor gNB
NX-R2028
  • all-in-one gNB
  • 2x2 MIMO
  • 2x10W PO
Outdoor N79 Integrated Small Cell. Supports Sub-6G FR1 N79 frequency band all-in-one gNB, Supports 100MHz Channel Bandwidth, Supports DL 648Mbps, UL 406Mbps transmission speeds, Supports 5GC SA mode and simultaneous connection from 1000 users, 2x2 MIMO (DL: 2L, UL: 2L), 2x10W power output.
CT Product Introduction
CT Product Introduction
CT Product Introduction
  • Communication Technology
  • Operational Technology
  • Improve Efficiency
Heterogeneous Networking CT(Communication Technology)is seen as imperative to strengthen OT(Operational Technology)efficiency.
NX-R2150
Indoor RU
NX-R2150
  • FR1、5G
  • GPS/IEEE 1588v2/SyncE
  • SU-MIMO 4x4
Indoor N79 RU. Supporting FR1 for 5G Private Network, Supporting CPRI、Split Option 8, Supporting GPS/IEEE 1588v2/SyncE time synchronization, Supporting SU-MIMO 4x4, 200 active users per cell.
NX-R2032_mode
Indoor gNB
NX-R2032
  • NR FR1 Band N78
  • 100MHz bandwidth
  • 3GPP Release 15
Indoor N78 Integrated Small Cell. Standard NR FR1 Band N78, Comply with 3GPP Release 15, GUI-based local and remote Web management, Supports up to 100MHz bandwidth, Supports 64 RRC connected users per cell, Integrated Small Cell form factor for quick and easy installation, Supports flexible xHaul, Supports TR-069 network management interface, Lower power consumption, which reduces OPEX.
產介_大圖_NX-R2052_mode
Outdoor gNB
NX-R2052
  • all-in-one gNB
  • 4x4 MIMO
  • 4x40W PO
Outdoor N78 Integrated Small Cell. Supports Sub-6G FR1 N78 frequency band all-in-one gNB, Supports 100MHz Channel Bandwidth, Supports DL 1400Mbps, UL 330Mbps transmission speeds, Supports 5GC SA mode and simultaneous transmission from 200 users, and simultaneous RRC connections from 600 users, 4x4 MIMO (DL: 4L, UL: 2L), 4x40W power output.
SMO
NMS
SMO
  • Visualized
  • Multi-Protocol Support
  • Efficient Management
Service Management and Orchestration. Visualized management and network topology are clear at a glance, Multi-protocol support for easy protocol migration, Supports O-RAN’s O1, A1 and E2 interfaces, Manage configurations, faults, efficiency and firmware, rApp and xApp, 5G application integration, Remote real-time equipment control, Real-time pushing of notifications.
5GC
5G Core Network
5G Core Network.
  • Intranet
  • Edge 5G
  • 5G IoT
5G Core Network. Supports the deployment of private mobile networks within enterprises, Deploys and manages 5G core network functions on Edge devices, Supports 4G NSA and 5G SA network architectures, Provides 5G Internet of Things(IoT)services, and provides high-performance, low latency and secure connection capabilities, Able to cross multiple private mobile networks to provide integrated software life cycle and service management, Real-time 5G system monitoring, provides real-time monitoring for the entire 5G private network, Supports enterprise network slicing.
BBU and rHUB
NX-H2111
  • Wi-Fi 6 AX1800
  • 5G NR SA DL/UL: 2CA*/1CA
  • LTE DL/UL:Max. 5CA /Max. 4CA5CA/Max.4CA
5G rHUB. Supports 4G/5G multi-antenna deployment, Supports O-RAN Option 7.2 and Option 8 telecommunication transmission architecture, A single unit can access a maximum of 8 active/passive antenna units, Two 25G SFP28 optical interface upload ports and base band server BBU access, Supports CPRI/eCPRI specification information collection and transmission.
K888G4
BBU and rHUB
K888G4
  • Base Band Uint
  • x-86基礎架構
  • 5G SDN 伺服器
Baseband Unit(BBU). x-86 infrastructure server provides efficient computation for BBU software, High-performance software-defined 5G SDN server, The PCIe acceleration card accelerates 5G communication base band data processing, 10G/25G SFP+ optical interface supports massive data transmission and computation capabilities, A single unit can support 5G distributed unit(DU)and central unit(CU)with independent or mixed deployment modes.
NX-H2200
Outdoor CPE
NX-H2200
  • Wi-Fi 6 AX1800
  • 5G NR SA DL/UL:2CA/1CA
  • LTE DL/UL:Max. 5CA/Max. 4CA5CA/Max. 4CA
Outdoor 5G CPE. Supports 5G(including N78 and N79), Supports Wi-Fi 6(supports 2.4GHz and 5GHz frequency bands), A good choice for outdoor heterogeneous network integration.
NX-H2201LTE DL/UL:Max. 5CA /Max.  4CA5CA/Max.4CA
Indoor CPE
NX-H2201
  • Wi-Fi 6 AX1800
  • 5G NR SA DL/UL: 2CA*/1CA
  • LTE DL/UL:Max. 5CA /Max. 4CA5CA/Max.4CA
Indoor 5G CPE. Supports 5G(including N78 and N79), Supports Wi-Fi 6(supports 2.4GHz and 5GHz frequency bands), A good choice for indoor heterogeneous network integration.
NX-H3003A
Indoor CPE
NX-H3003A
  • Edge AIoT
  • 5G/WiFi6/ LoRa wireless connections
  • Media & AI Integration
5G Edge AI Gateway. Excellent AI and edge computing capabilities, Wireless/artificial intelligence modules with extreme flexibilities for providing industrial-grade durability standards, Embedded systems with wide working temperatures.
News.
2024
Partners.
Inventec combines the experienced manufacturing strength and production line system as a foundation to integrate the advantage of 5G Private Network technology which implements AI; AR and IoT applications upon Edge AI and Heterogeneous Network Gateway to shape 5G Smart Factory for meeting OEE and ESG efficiency and Digital Transformation realization.
