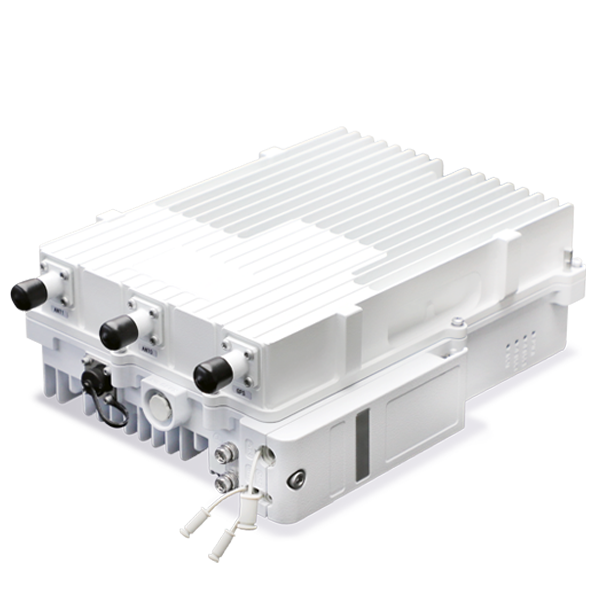

Outdoor gNB
NX-R2022
Outdoor gNB
NX-R2022
Features
- Outdoor N78 Integrated Small Cell.
- Supports Sub-6G FR1 N78 frequency band all-in-one gNB.
- Supports 100MHz Channel Bandwidth.
- Supports DL 850Mbps, UL 660Mbps transmission speeds.
- Supports 5GC SA mode and simultaneous connection from 1200 users.
- 2x2 MIMO (DL: 2L, UL: 2L).
- 2x10W power output.
Frequency band.
|
Outdoor all-in-one gNB that complies with international Sub 6G FR1 N78 frequency band (3300 ~ 3600MHz).
|
Equipment type.
|
Outdoor Option 8 all-in-one antenna.
|
Antenna type and output power.
|
2X2 MIMO transmission architecture and 2X10W output power.
|
Transmission speed.
|
Provides DL 850Mbps UL 660Mbps transmission speeds. |
Simultaneous 5G connection.
|
Can provide simultaneous connection for 1200 people outdoors.
|
NX-R2022 Specification Table
Support
Support
